AXLE CAPACITY(1)(4) Pounds (kg) |
AVAILABLE DIFFERENTIALS |
DIFFERENTIAL RING
GEAR DIAMETER
AND FACE WIDTH
Inches (mm) |
AVAILABLE
OVERALL
RATIOS |
|
Off-Highway Truck
22,000-35,300
(10,000-16,000)
Ro-Ro AWD Terminal
55,100 (25,000)
Tow Tractor
28,700 (13,000)
A.T. Crane
28,700 (13,000)
|
Standard, Limited Slip
or Differential Lock
|
5000 Series 11.14" (283)
1.80" (48)
11.43" (290.4)
1.97" (50)
|
4.80 -28.0:1.0
|
A
AXLE MOUNTING CENTERS
Inches (mm) |
B
HUB FLANGE
TO FLANGE(2)
Inches (mm) |
TIRE SIZE
Inches (mm) |
BRAKES (3) |
PLANETARY
WHEEL-END
RATIO |
|
None
38.8" (986)
40.5" (1,029)
43.0"(1,092)
40.4 (1,025)
|
54.5" (1,385)
71.0" (1,803)
71.0" (1,803)
84.9 (2,156)
88.0 (2,235)
|
20" (508)
24" (610)
|
16.5" x 7.0" “QY”
(419 x 178)
16.5" x 7.0" "P"
(419 x 178)
16.1" x 7.9" “RDA”
(410 x 200)
15.7" x 4.7" "H"
(400 x 120)
19.7" x 7.9" "RDA"
(500 x 180)
|
3.55:1.0
4.0:1.0
4.63:1.0
4.0:1.0
4.63:1.0
5.6:1.0
|
|
Approval required on all applications.
Varies with brake/tire options.
16.5” x 7.0” QY and 16.5” x 7.0” P are registered trademark of ArvinMeritor , Inc.
Load rating dependant on axle model.
|
.jpg)
TYPICAL AXLE WEIGHT LBS (KG) = 1,764 lbs (800 kgs)
EXAMPLE:
5521SFW with 71.0 (1,803mm) hub flange to flange, 16.1x7.9RDA
(410x200) Brakes=1,455 lbs. (660 kgs).
5524SFC with 108.6” (2,758mm) hub flange to flange, 16.5x7.9QY
(419x178) Brakes= 1,713 lbs. (777 kgs).
TYPICAL FAMILY OIL CAPACITY: Total axle 29.1-65.1 pints (14-31 liters)
EXAMPLE:
5524SFC with 108.6” (2,758 mm) hub flange to flange is 63.0 pints
(30 liters) for total axle.
5521 SFW with 91.9” (2,335mm) hub flange to flange is 37.8 pints
(18.0 liters ) for total axle.

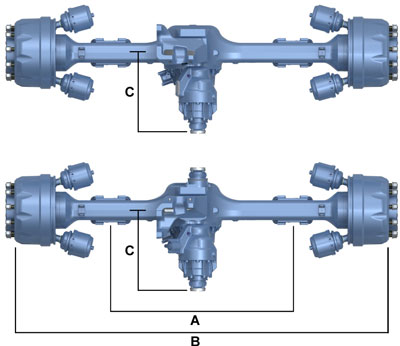

A) Axle Mounting Centers
B) Hub Flange to Flange
C) Forward Carrier Standout With 1700 DIN Input Flange = 13.7” (347 mm)
Rear Carrier Standout
